Easy-Guard SlideIn M66. Fender Set-CDMG0013
  • CDMG0013

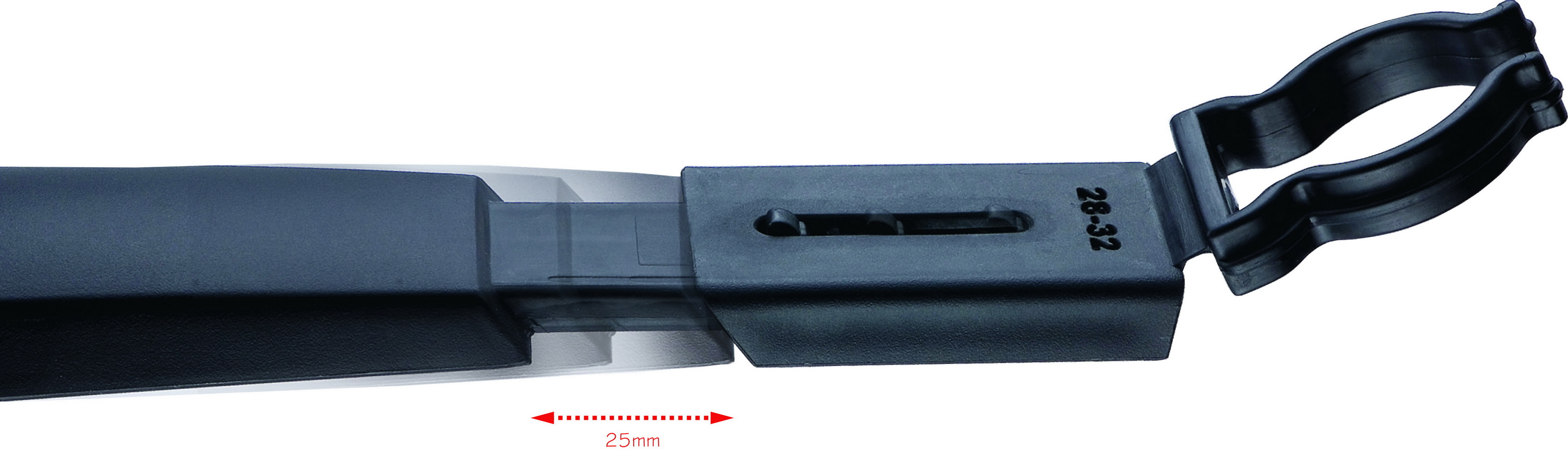

  • C clip have adjustable 25mm length for snap-fit seat tube fitting
  • CDMG0013
  • C clip have adjustable 25mm length for snap-fit seat tube fitting

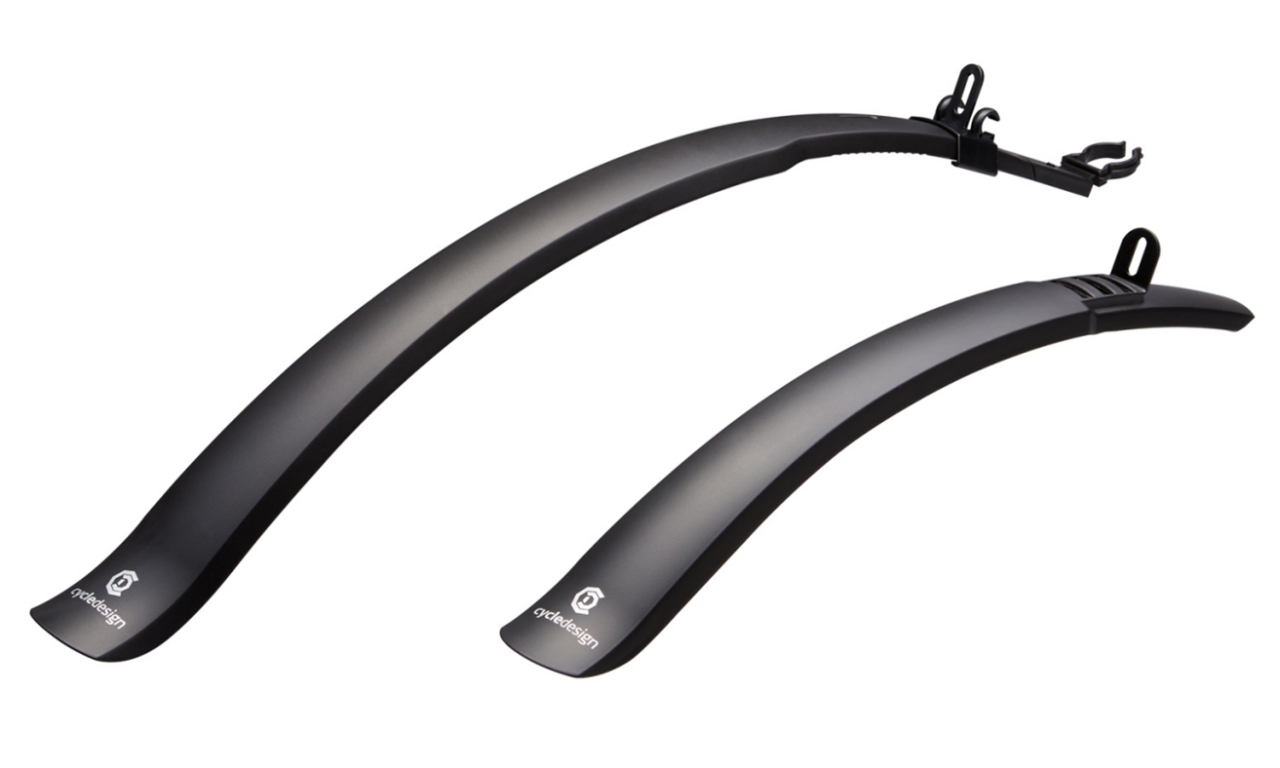

The cycledesign Easy-Guage SlideIn M66. Fender Set is a longer and slimmer profile

designed, a universal model for City bikes fits and covers tire widths up to 66mm / 40c

or 2.125" used, and equipped with fittings of SlideIn fixed hanger system.


In order to satisfy cover Trekking or Commuter's bikes with 28" wheel and cycling in

wet weather conditions, and to effectively prevent the rider from being sprayed behind

by rainwater, the cycledesign SlideIn52. Fender Set is suitable for tires with a maximum

size of 40c or 2.125".

It is designed with width-enhancing shoulders in a U-shape profile can be achievev

full-coverage protection for the large wheels of Cith Bike, and the rear mudguard has a

little warped tail that's to keep dry and clean, and the universal C-clip fastener with

Snap-on of slide-fit hanger to be fixed on the seattube, and the C-clip can be adjustable

25mm length.

Equipped with a sliding fixed hanger included, their length can be adjusted by sliding

forward and backward to quickly slide on or slide off to fit the tire size and prevent

rainwater from splashing onto the rider.

Rear mudguard, the SlideIn hanger not only can be fixed into bridge's hole, but also can

be suitable for a bridge without hole.


Practical mudguards are made from the excellent performance material in

wear-resistant and impact-resiatant, it's not easily damaged, the accessory bolts and

installation kits all included and that all the metal hardware is ED black finish for

durablility and corrosion resistance.
Material : PP

Wheel Size : 24" ~ 28" Bikes


Suitable For Tire Widths : Maximum 2.125" / 40c

Length front fender :508 mm

Length rear fender : 660 mm

Mudguard width : 66 mm

Included hardware bolts

SlideIn hanger fittings

Rear mudguard : C-clip 25mm adjustable length / Fit diameter :
ø28mm ~ ø31.8mm

Weight : 300 g (Included Fittings)

Color : Black

Feature : cycledesign logo / Made In Taiwan


 Long-enhancing shoulders in a U-shape profile

 Universal SlidIn hanger for multiple application / C clip fastener is adjustable length

 Lightweight and impact-resistant

 All metal hardware is surface finished for durablility and corrosion resistance
