Mini Pump Extract-Hose Dapper4.-CDPP0001 / CDPP0002 / CDPP0003 / CDPP0004 / CDPP0005 / CDPP0006
  • Anodized color option
  • Two-Chamber telescope principle
  • CNC-Machined aluminum pin for Schrader valve
  • Anodized color option
  • Two-Chamber telescope principle
  • CNC-Machined aluminum pin for Schrader valve
Telescope hybrid CNC-Machined mini hand pump maximum capacity of 120 psi.


Mode of 6061 aluminum High-Quality material and anodized surface antiozidation

treatment, telescope hybrid aluminum precise parts with side fixing flexible hose,

that's plastic base and Two-Chamber telescope principle comprised, capable of inflate

the tire to maximunm air capacity and faster inflation filling.

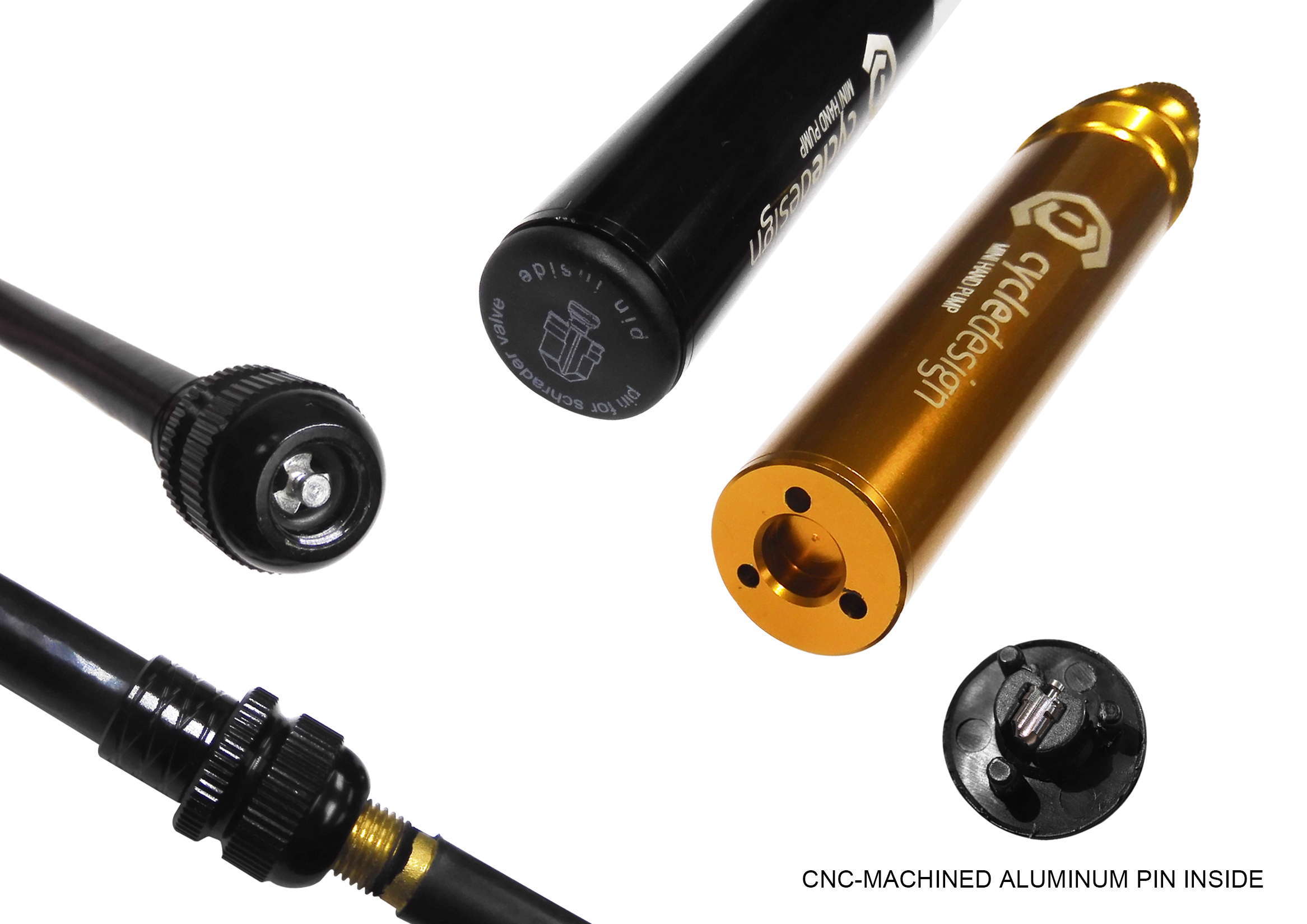

Converted to Schrader valve - Plastic base has a CNC-Machined aluminum pin inside

and can be installed to head valve connectors with pin mounted on the screws ensure

a secure fix as well.


Practical - Included extra bicycle bracket can be installed to frame with mounts buckle

under the bottle cage, and flexible hose can be around bracket for securely.


Barrel : CNC-Machined Aluminum 6061

Shaft : CNC-Machined Aluminum 6061

Valve Cap : CNC-Machined Aluminum 6061

Valve available for Presta or use the extra CNC-Machined aluminum pin for Schrader

Included : Extra extension hose / Bracket / Pin


Size Length : 11 cm

Hose Length : 23 cm

Max. Pressure :120 psi /  8 bar

Weight : 104 g

Finish : Anodized color

Feature : cycledesign logo / Made In Taiwan

 CNC-Machined aluminum barrel and handle, equipped with a pin for Schrader valve


 Extendable hose easies threads into the head for a snug fit

 L
ightweight aluminum metallic material, easy to operate when inflating

 Included extras bicycle bracket mount

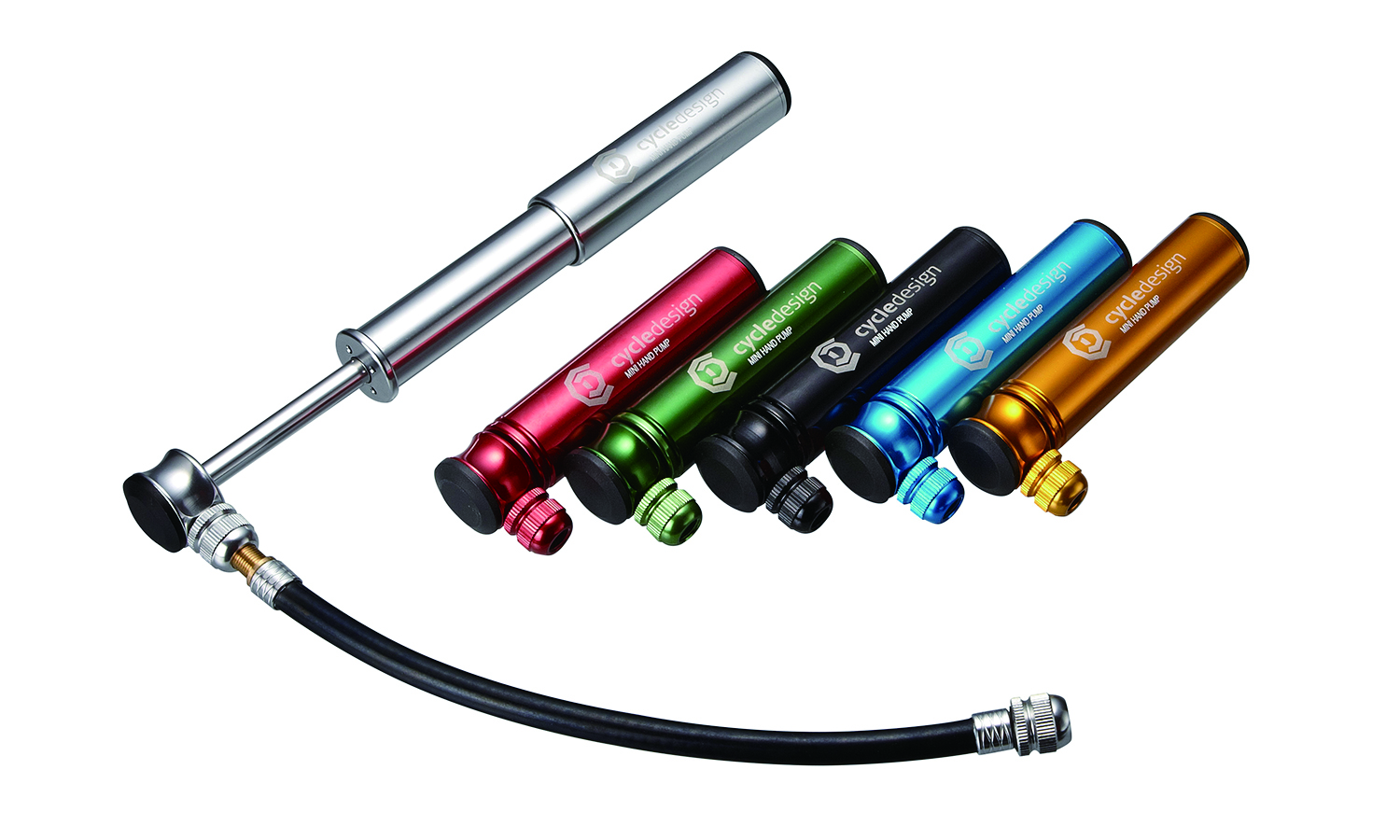

Item :               Color :


CDPP0001          Black

CDPP0002          Green

CDPP0003          Red

CDPP0004          Gold

CDPP0005          Blue

CDPP0006          Silver
