BrightBar LM-375.-CDLT0107 ~ CDLT0109
  • CDLT0107-Black
  • CDLT0108-Sliver
  • CDLT0109-Res
  • Charging Time - 4 hrs by Micro-USB

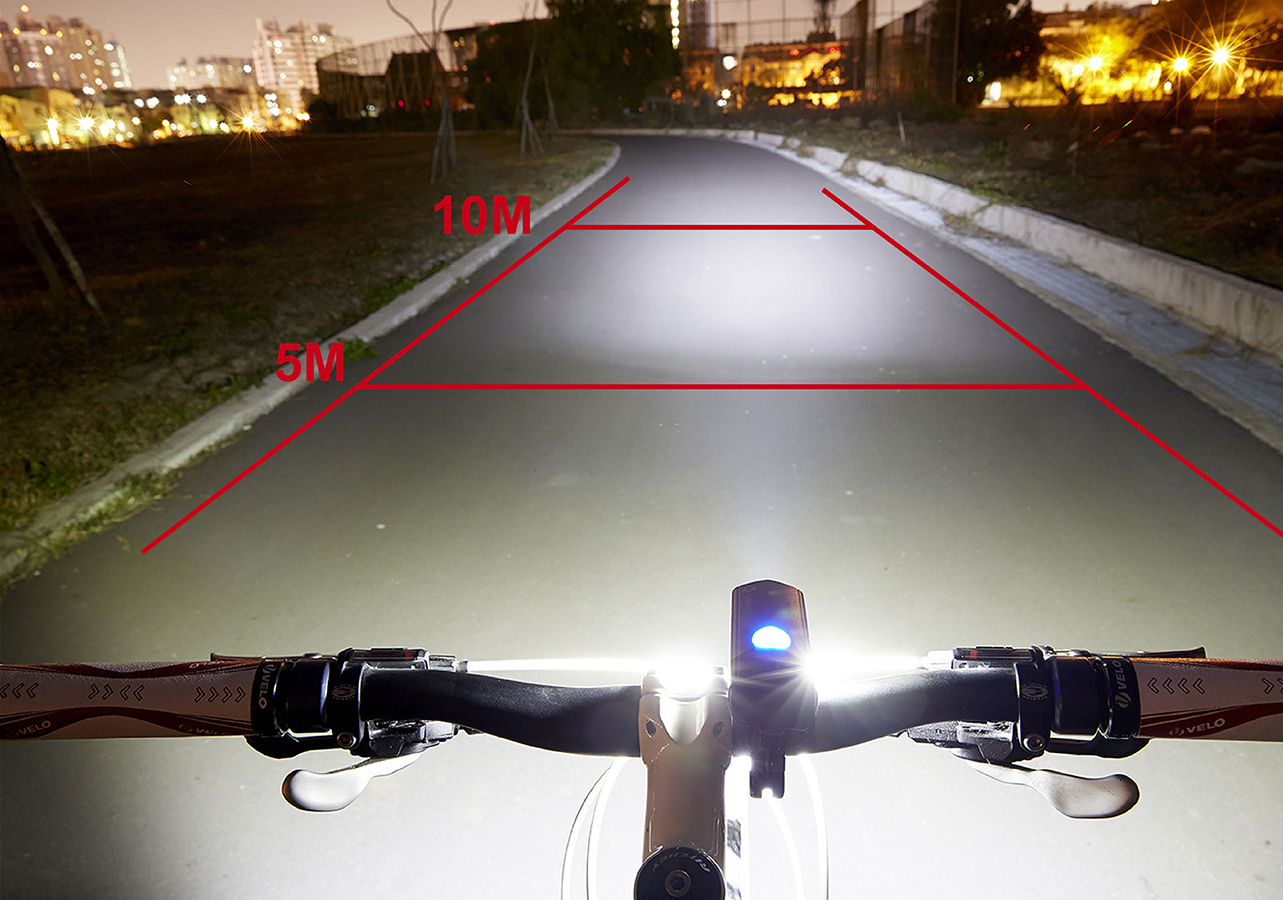

  • Max throw irradiation distance is up to 100 meters
  • CDLT0107-Black
  • CDLT0108-Sliver
  • CDLT0109-Res
  • Charging Time - 4 hrs by Micro-USB
  • Max throw irradiation distance is up to 100 meters
The cycledesign BrightBar LM-375. is a high powered 375 Lumens bicycle front light,


with Three-mode beam with a LED front output, equipped with the powerful CREE LED

lamp bulb that the optical enhancenments max throw irradiation distance is up to 100

meters, it's useful and increasing visibility to improve the riding at night.



Made of aluminum case has certified waterproof IPX4 with high power rechargeable


battery to support powerful CREE LED bulb, built in 1500mAh rechargeable by

Micro-USB
cable interface input high-current recharging capability ensuring longer

runtime and
reliable performance. Integral aluminum construction with quick release

bracket mount compatible for handlebar max siezs
ø31.8mm, and the metal case

ensure
temperature control circuit design allowing for effective LED bulb durability and

heat
dissipation performance.



Multi-Purpose headlight modes option designed for brightness, two hight-brightness

lighting modes and one
 flashing mode alerts drivers to your presence.

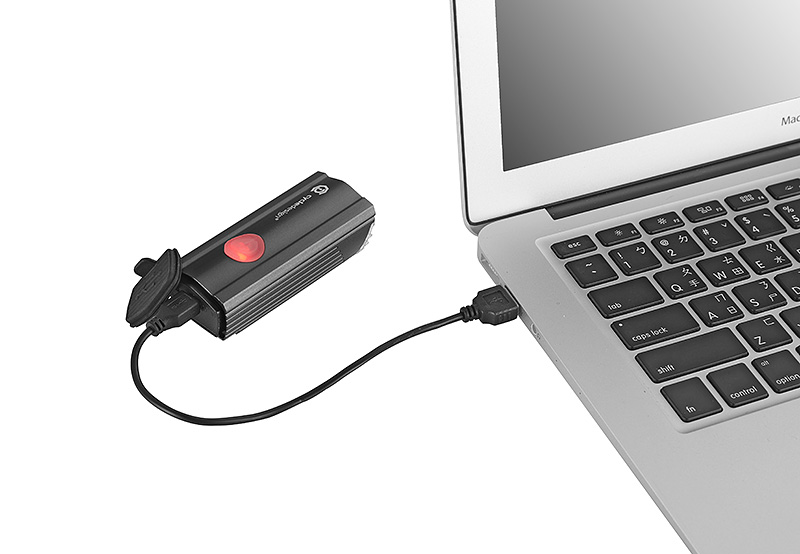

Equipped the Micro-USB rechargeable outpurt via any standard USB port

(charging is Red light), and when the battery capacity is less
than 10%, the buttum will

flash blue light to alert rider and also to extend t
he battery power.



Material : Aluminum


Max Brightness : 375 Lumens

Battery Type : Lithium Ion 1500 mAh (Rechargeable)

Charge Time : 4 hrs by Micro-USB (DC5V / 0.5A)

Bulb : CREE LED * 1 pc


Light Modes :       Mid Beam    High Beam     Flashing

Max RunTime :      4.5 hrs       1 hr               9 hrs



Included Micro-USB Cable * 1 pc


Bracket : Handlebar mount maximum size ø31.8 mm


Size : 82 * 33 * 27 mm


Weight : 115 g


Certified Weightproof IPX4


Feature : cycledesign logo / Made In Taiwan


High power lighting 375 lumens, equipped with powerful CREE LED bulb

 Cut-Off Line design won't cause glare for oncoming vehucles and pedestrians


 Compact and lightweight aluminum case for good heat dissipation

 Optical enhancements increasing both sides visibility



Item :               Finish :

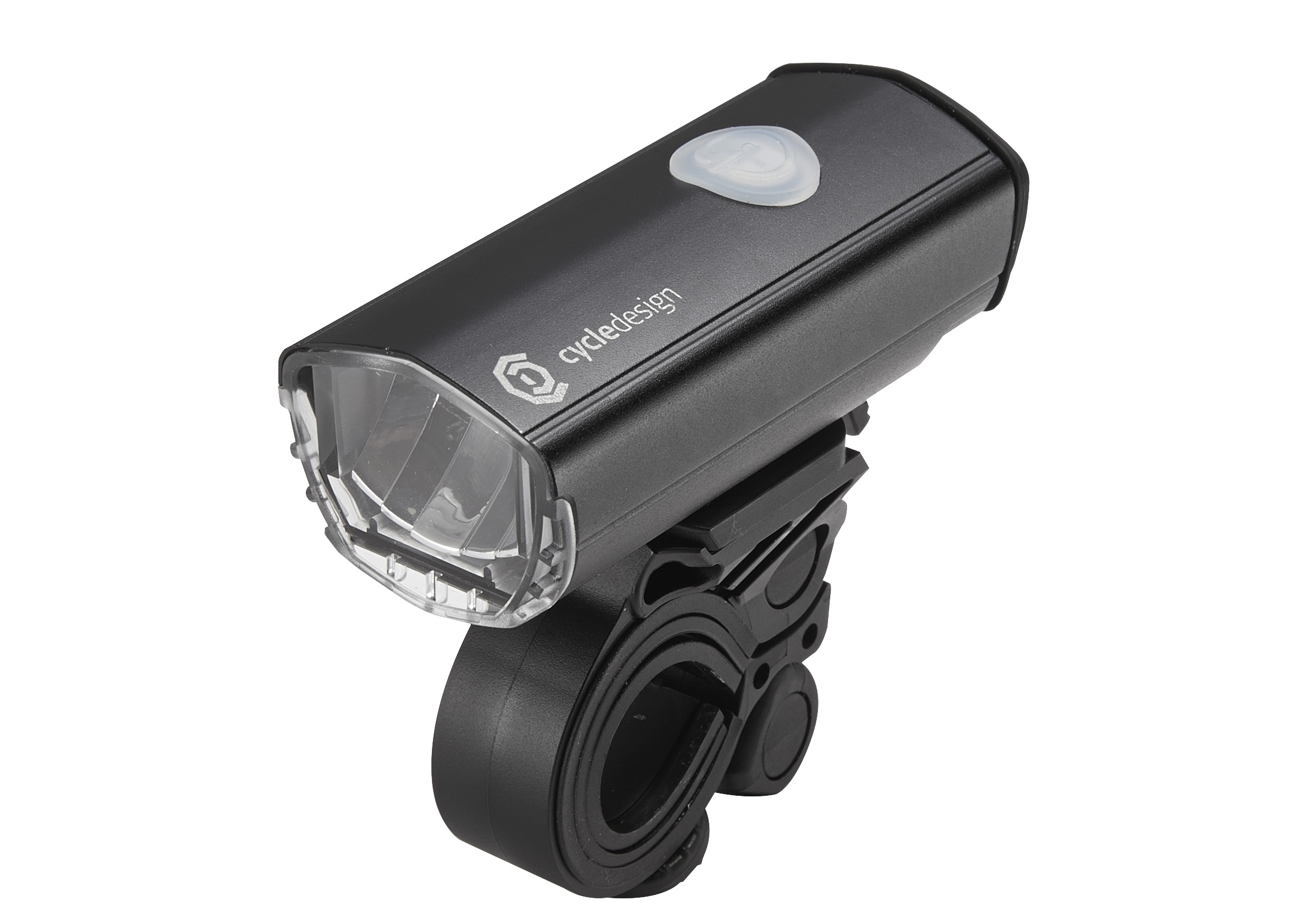

CDLT0107          Anodized Black

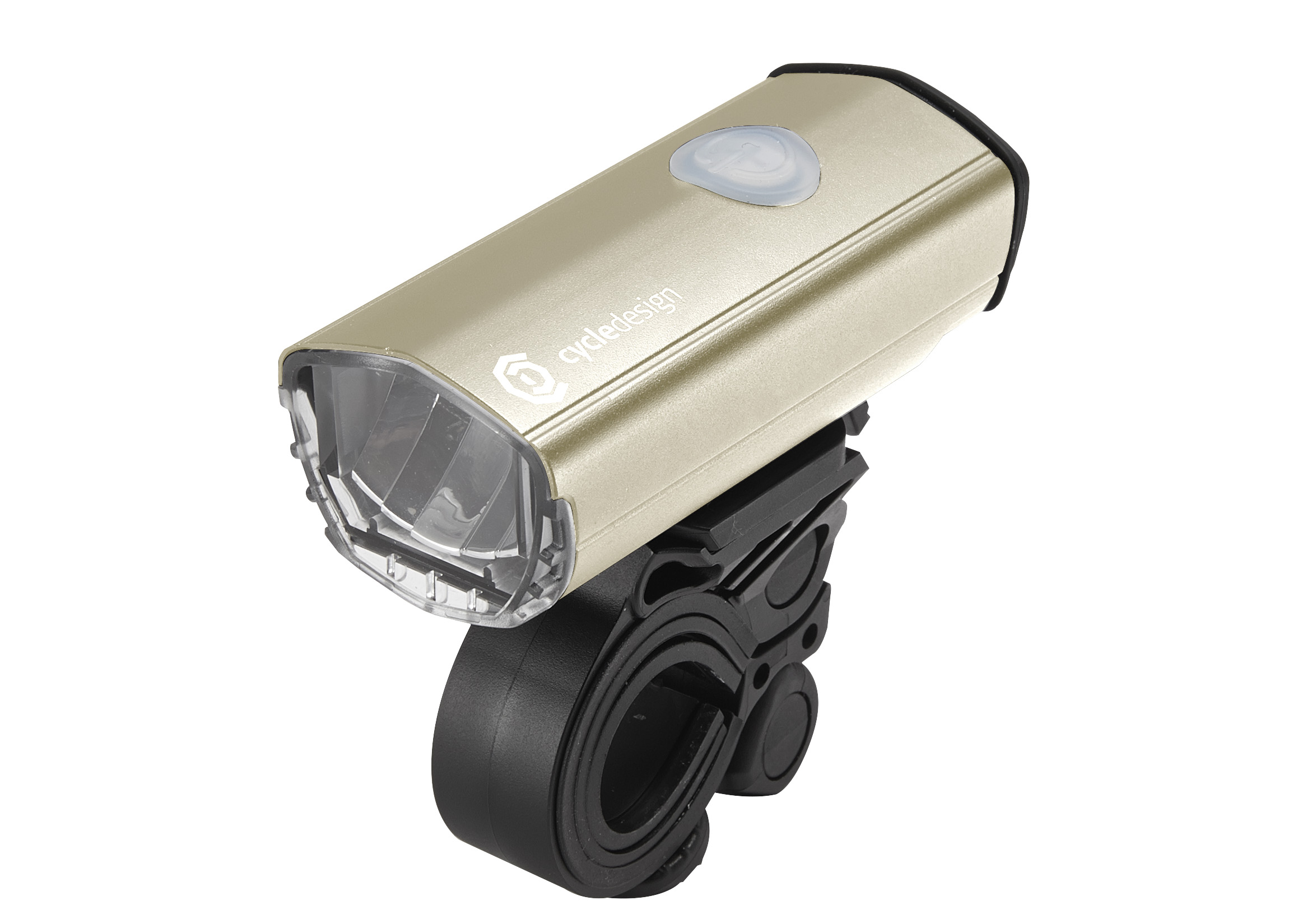

CDLT0108          Anodized Silver

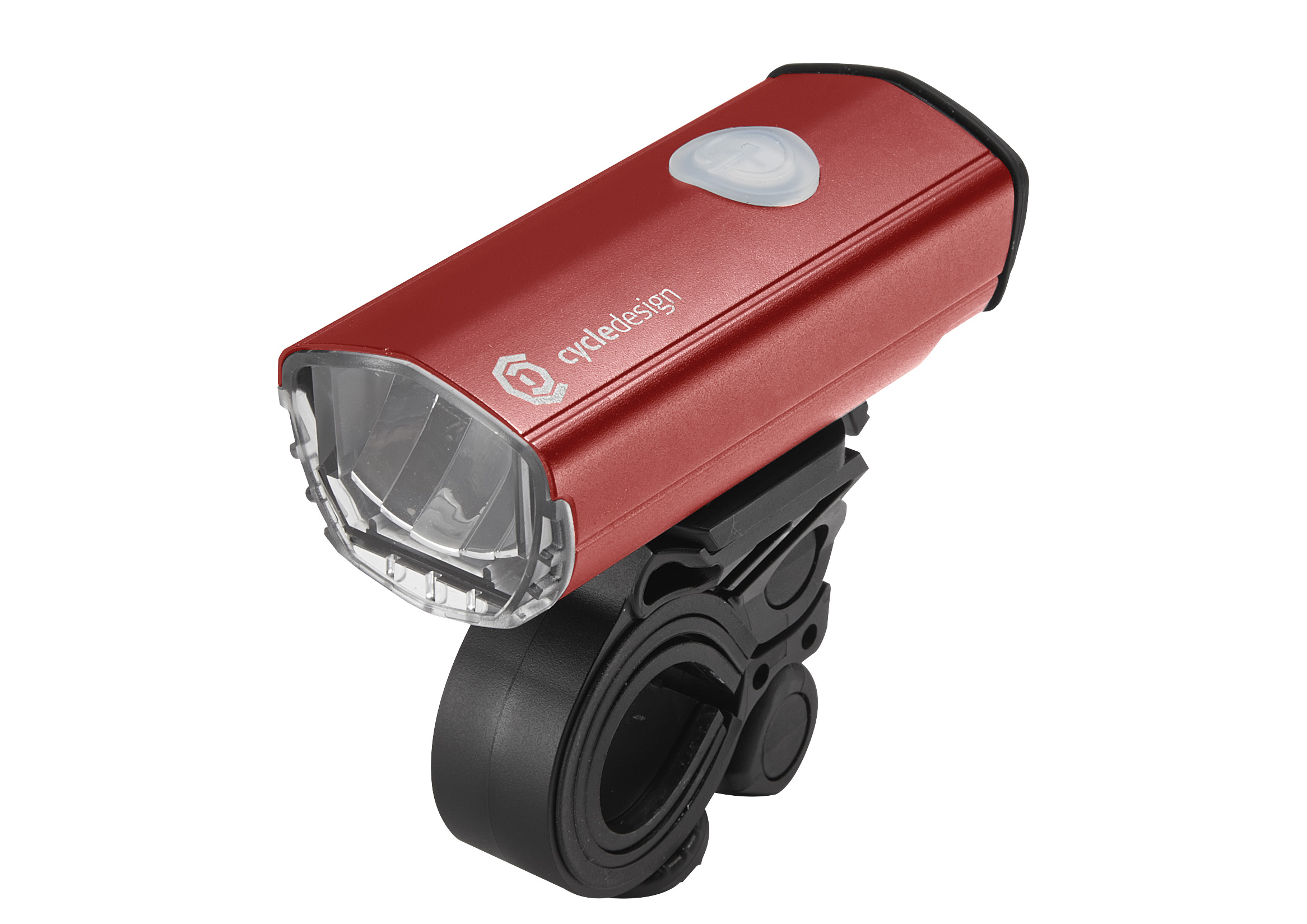

CDLT0109          Anodized Titanium
