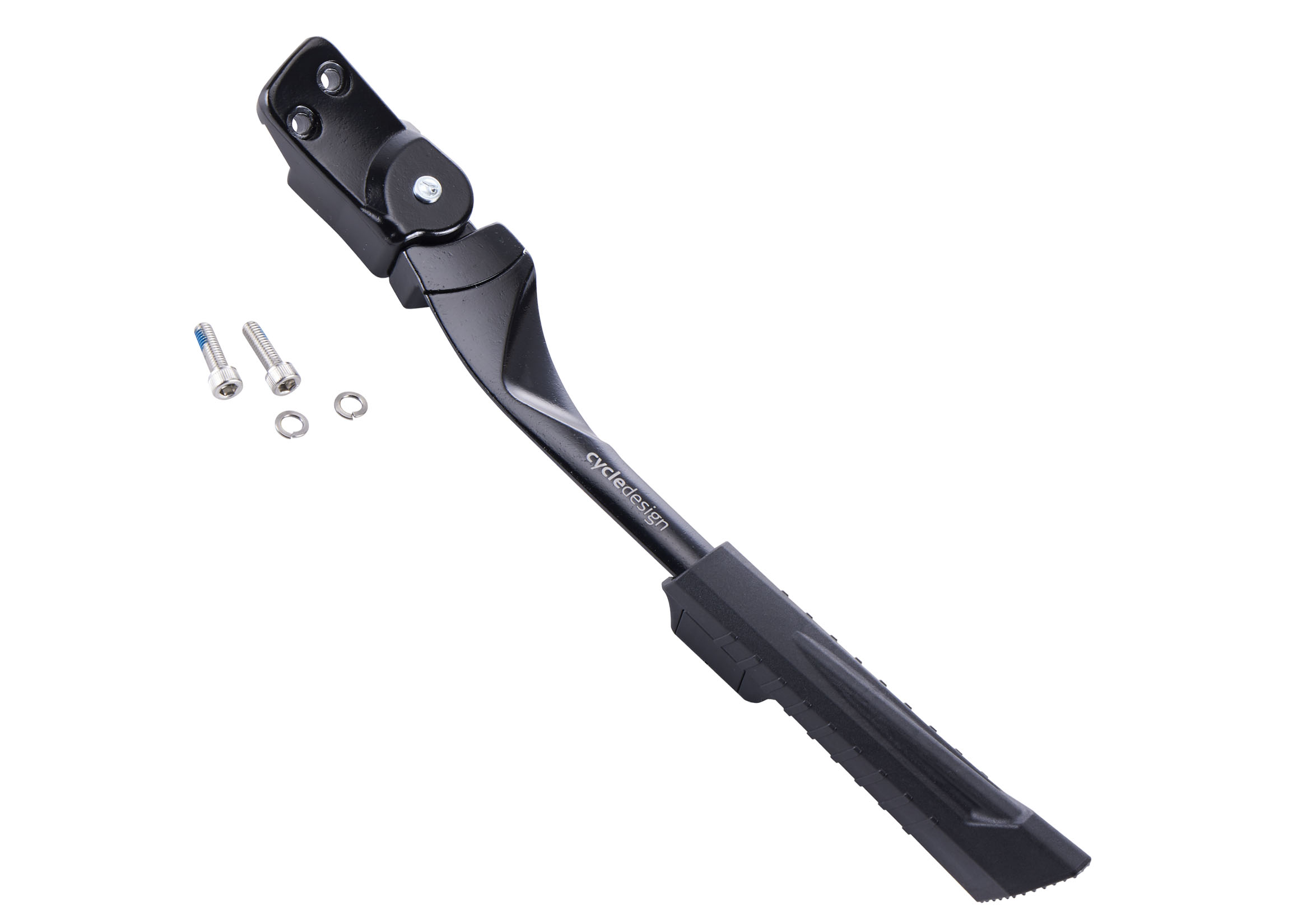

Direct-Mount Kickstand-CDKS00021 / CDKS0022
The cycledesign E-Bike kickstand designed for direct mount solution on chainstay of
hole pitch 18mm dropout spacing.
Crafetd for the telescope type for installation with various wheel sizes compatibility to fit
maximum tire sizes ranging from 26" ~ 29" and 24" ~ 28" bikes use.

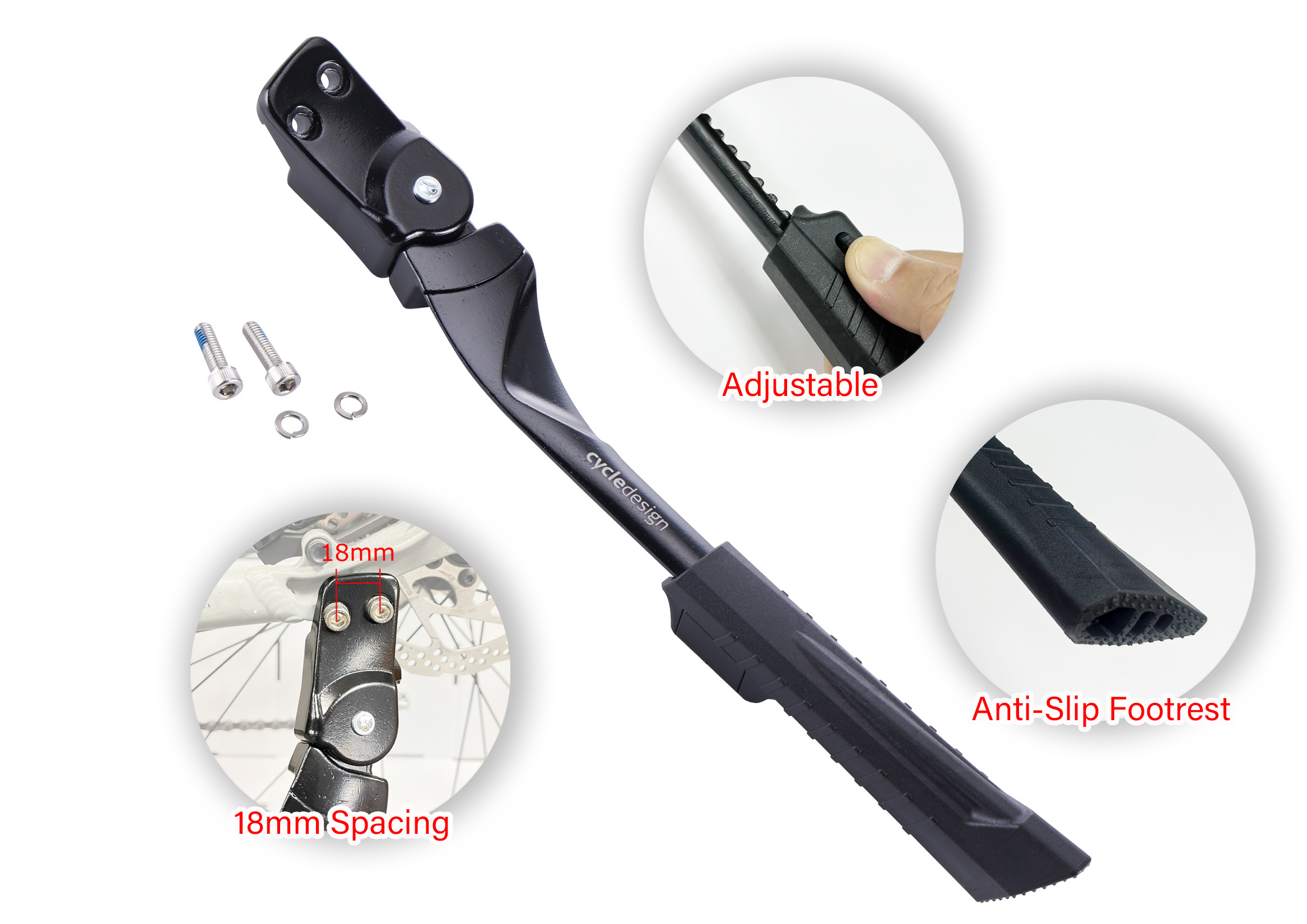

Telescope adjustable length design equipped with Tool-Free adjustable press buckle to
clip the leg to fit the stand perfect height for your bike in a stable and secure place.
Made of Heat-Treated metal die-casting aluminum mold on top, and mechanic extrusion
leg structure with the integrated large foot cuff, with enlarged and widened anti-slip
footrest grommet to support at the end.
Integral metal machinery on top design to maintain rubustness and durability to carry
up to maximum loading.
hole pitch 18mm dropout spacing.
Crafetd for the telescope type for installation with various wheel sizes compatibility to fit
maximum tire sizes ranging from 26" ~ 29" and 24" ~ 28" bikes use.
Telescope adjustable length design equipped with Tool-Free adjustable press buckle to
clip the leg to fit the stand perfect height for your bike in a stable and secure place.
Made of Heat-Treated metal die-casting aluminum mold on top, and mechanic extrusion
leg structure with the integrated large foot cuff, with enlarged and widened anti-slip
footrest grommet to support at the end.
Integral metal machinery on top design to maintain rubustness and durability to carry
up to maximum loading.
Material : Aluminum
Maximum Loading : 30 kg
Direct mount on chainstay of hole pitch 18mm spacing
Equipped with Tool-Free adjustable press buckle
Plastic footrest grommet
Included hardware / M6 * 20mmL * 2pcs with Loctite screws
Finish : ED Black
Feature : cycledesign logo / Made In Taiwan
Integral metal machinery on top direct mount hole pitch 18mm spacing design
Maximum Loading : 30 kg
Direct mount on chainstay of hole pitch 18mm spacing
Equipped with Tool-Free adjustable press buckle
Plastic footrest grommet
Included hardware / M6 * 20mmL * 2pcs with Loctite screws
Finish : ED Black
Feature : cycledesign logo / Made In Taiwan
Integral metal machinery on top direct mount hole pitch 18mm spacing design Heat-Treated metal aluminum is reliable and tough Telescope adjustable length design, use screws to lock the leg to fit perfect height Versatile wheel size compatibility to fit a wide range of bikes Item : Suitable : Weight :
CDKS0021 26" ~ 29" Bikes 339 g
CDKS0022 24" ~ 28" Bikes 329 g
