Index / product / Lights / Front Light

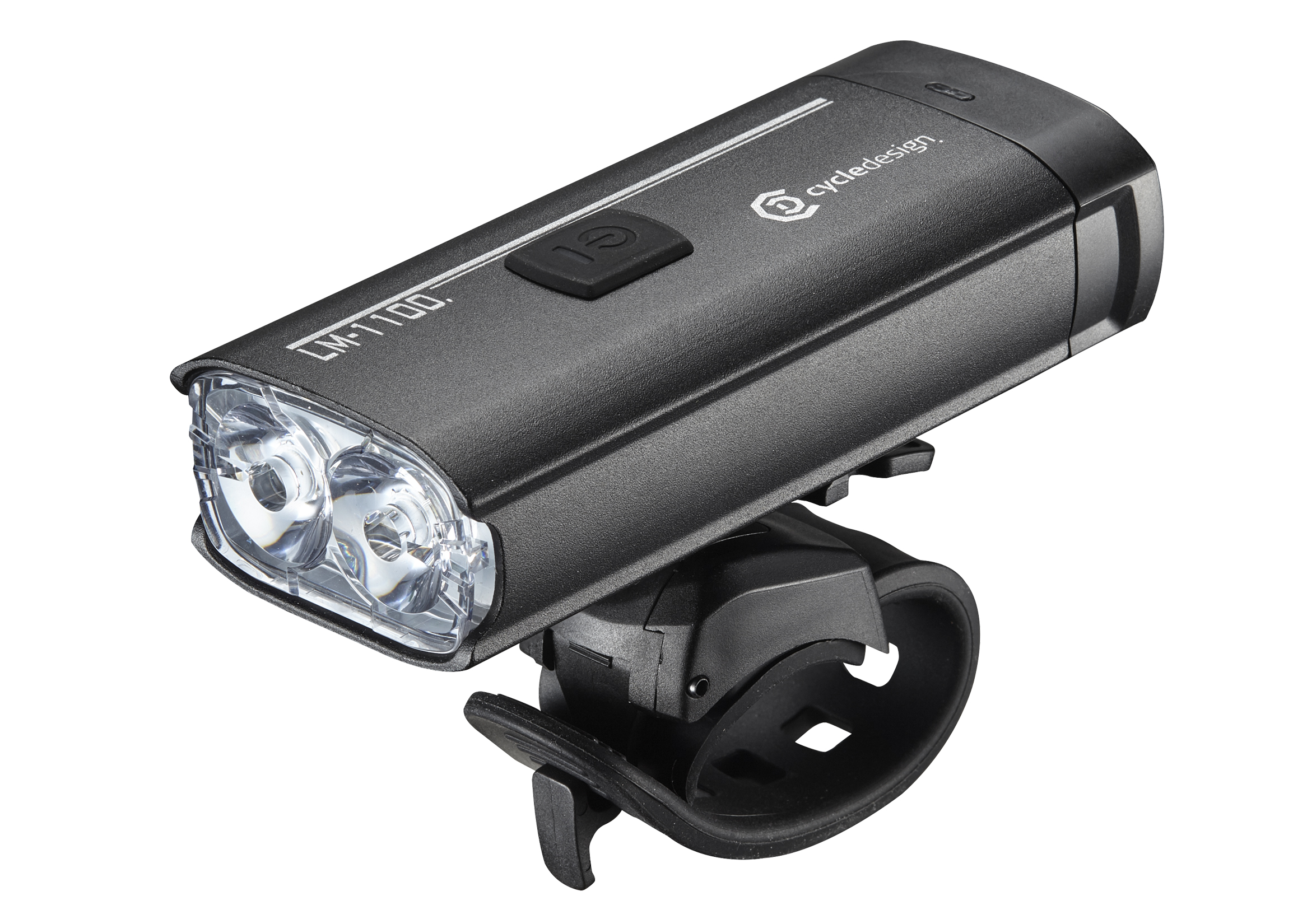

BrightBar LM-1100.-CDLT0187
The cycledesign BrightBar LM-1100. is a high power and versatility with 1100 Lumens

and Six-mode beam with two-bulb LEDs front output, and optical enhancements also

inscrease side visibility.


Made of aluminum case has certified waterproof IPX5 with high power LEDs of two bulb

for lighting enhancement and optical increasing visibility for safe riding, built in

2800mAh rechargeable by USB Type-C cable input quick charging 2A capability allows

recharging 2.5hrs to full, while the aluminum construction with cooling fins ensures

temperature control circuit design allowing for effective LED bulb durability and heat

dissipation performance.

Multi-Purpose headlight modes option designed for brightness, three constant lighting

modes and two flashing modes alerts drivers to your presence.

Auto-Adaptive ambient lighting sensing, automatic environment responsive brightness

lighting mode will adjust lighting output mode.

A versatile tool-free strap bracket has inserted a strong magnet equipped with an

exclusive bracket which triggers the auto power-on and power-off function, and
60°

rotatable light angle.

In addition, it except benefits from various modes function, and it has a memory mode

design, when you turn the light on, it lights up in the last lighting mode you used.


Material : Aluminum


Max Brightness : 1100 Lumens

Battery Type : Lithium Ion 2800 mAh (Rechargeable)

Charge Time : 2.5 hrs by USB Type-C (DC5V / 2A)

Bulb : High power LED * 2 pcs


Light Modes / Lumens : Auto Mode 1100 lm    Low Beam / 300 lm    Mid Beam / 550 lm

Max RumTime :             1.5 hrs ~ 17 hrs         4 hrs                        2.5 hrs


      1.5 sec.      Blinking / 1100 lm        Flashing / 80 lm        High Beam / 1100 lm
OFF                12 hrs                         20 hrs                      1.5 hrs




Included USB Type-C Cable * 1 pc

Strap Bracket : Handlebar mount
ø19mm ~ ø40mm / Rotatable 60°

Size : 99.7 * 39.7 * 29 mm

Weight : 135 g

Certified Waterproof IPX5


Memory Mode Function

Color : Power Coating Anodized Black

Feature : cycledesign logo / Made In Taiwan

 High power battery and super lighting brightness of 1100 lumens, up to 100 meters

    illuminating

 Automatic environment responsive mode ambient lighting

 Versatilie strap bracket with an exclusive bracket to trigger the auto power function

    and
60° rotatable light angle

 Lightweight aluminum case with good heat dissipation with versatile lighting mode for

    safe riding
