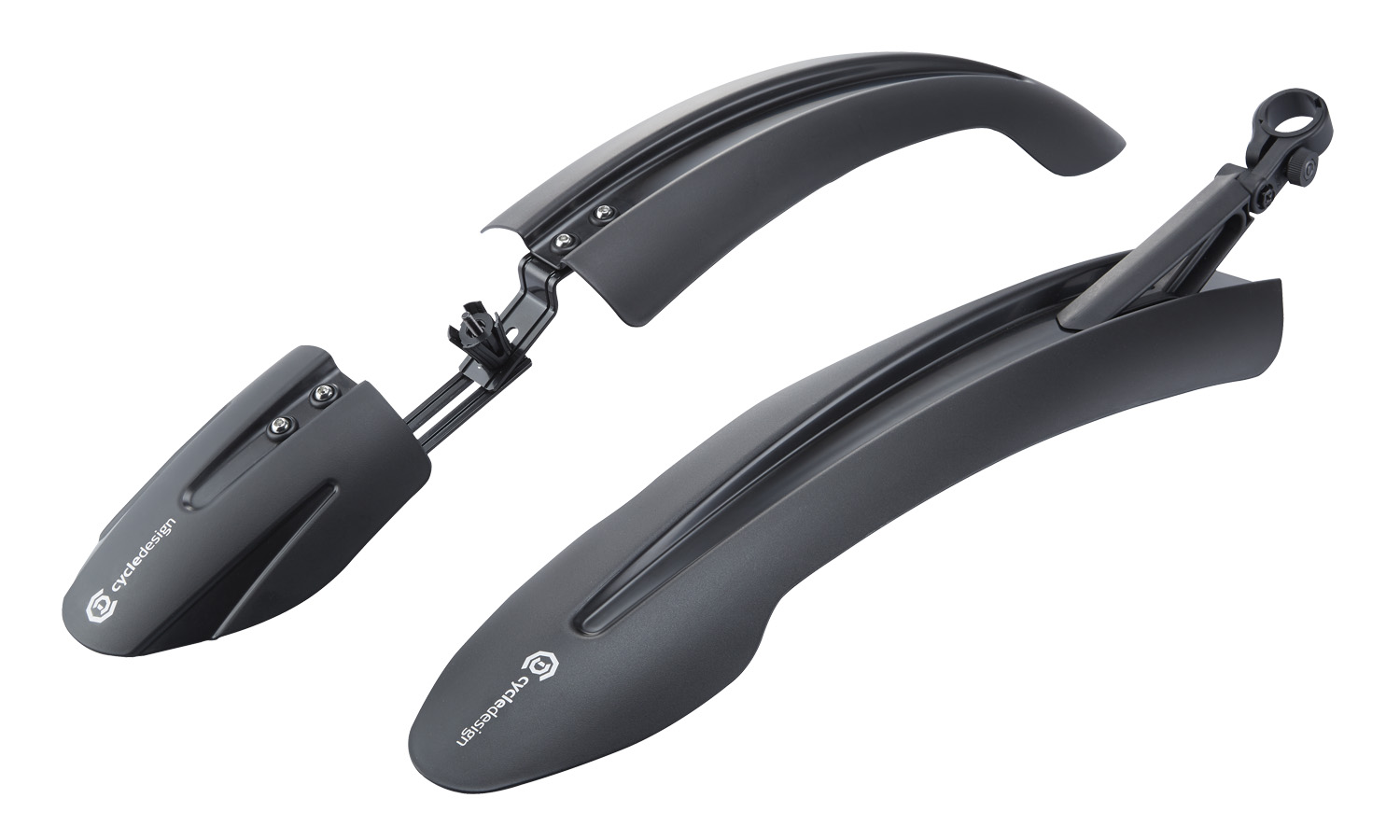

Cycle-Guard KnobIn Fat M4. Fender Set-CDMG0018
-
CDMG0018
-
CDMG0018
The cycledesign Cycle-Guage KnobIn Fat M4. Fender Set is a tapered shape profile and
sporty look design.
sporty look design.
The extra-wide and enlarged shape in a shoulder design is suitable for the Fat tires with
a maximum size of 26 x 4", in order to satisfy big tires, enjoy cycling in wet weather
conditions, prevent the rider from being sprayed behind by mud and rainwater splashes,
and the tough bridge connector can be strongest to fix the mudguards, and it can be
adjusted the up and down angle from click-on system by fix bolts.
a maximum size of 26 x 4", in order to satisfy big tires, enjoy cycling in wet weather
conditions, prevent the rider from being sprayed behind by mud and rainwater splashes,
and the tough bridge connector can be strongest to fix the mudguards, and it can be
adjusted the up and down angle from click-on system by fix bolts.
Front mudguard, equipped with a Click-In compression device attachment fits steerer
tube base of fork, it's fastened into fork's crown, twist the screw and the compression
expansion core to expand the fork base until it locks onto the fork's crown.
tube base of fork, it's fastened into fork's crown, twist the screw and the compression
expansion core to expand the fork base until it locks onto the fork's crown.
Rear mudguard, the Click-On bolt with adjustable clamp fastener, the angle adjustable
raised by bolts on the bridge adjustable rise up to 35º to cover a range suitable for
wheel sizes.
raised by bolts on the bridge adjustable rise up to 35º to cover a range suitable for
wheel sizes.
Which the QuickIn adjustable joint clamp combines woven strap with anti-slip cushion
embedded in the middle to be installed onto seatpost, it's a maximum size of ø35mm.
embedded in the middle to be installed onto seatpost, it's a maximum size of ø35mm.
High performance and lightweight composite material and extra-wide coverage to fit
larger wheel sizes, attached the accessory bolts and installation kits all included and
that all the metal hardware is ED black finish for durablility and corrosion resistance.
larger wheel sizes, attached the accessory bolts and installation kits all included and
that all the metal hardware is ED black finish for durablility and corrosion resistance.
Material : PP
Wheel Size : 26" Fat Bikes
Suitable For Tire Widths : Maximum 4"
Length front fender : mm
Length rear fender : mm
Mudguard width : Front 110.6 * 119 mm / Rear 131 mm
Included metal hardware steel bolts
Click-In compression device into fork attachment fits a maximum size of ø34.5mm
KnobIn adjustable joint clamp fits a maximum size of ø32mm seatpost
Wheel Size : 26" Fat Bikes
Suitable For Tire Widths : Maximum 4"
Length front fender : mm
Length rear fender : mm
Mudguard width : Front 110.6 * 119 mm / Rear 131 mm
Included metal hardware steel bolts
Click-In compression device into fork attachment fits a maximum size of ø34.5mm
KnobIn adjustable joint clamp fits a maximum size of ø32mm seatpost
Weight : 470 g (Included Fittings)
Color : Black
Feature : cycledesign logo / Made In Taiwan
.png)
Extra-Wide and enlarged in a shoulder is suitable for the Fat tires with a maximum
size 26" x 4.5"
Reinforced in a rear bracket and angle adjustable rise up to 35°
Exclusive metal hardware connector combines with KnobIn clip-on system
All the metal hardware is ED black finish for durablility and corrosion resistance
Color : Black
Feature : cycledesign logo / Made In Taiwan
Extra-Wide and enlarged in a shoulder is suitable for the Fat tires with a maximumsize 26" x 4.5"
Reinforced in a rear bracket and angle adjustable rise up to 35° Exclusive metal hardware connector combines with KnobIn clip-on system All the metal hardware is ED black finish for durablility and corrosion resistance
